Part-MC model data. More...

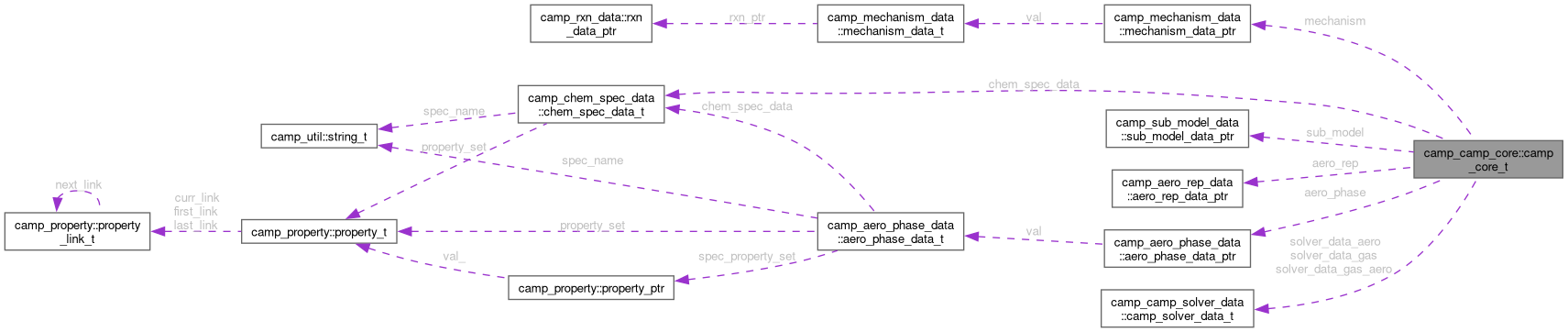

Collaboration diagram for camp_camp_core::camp_core_t:

[legend]

Public Member Functions
procedure	load_files (this, input_file_path)
	Load a set of configuration files.

procedure	load (this, input_file_path)
	Load model data from a configuration file.

procedure	initialize (this)
	Initialize the model.

procedure	is_initialized (this)
	Indicate whether the core has been initialized.

procedure	is_solver_initialized (this)
	Indicate whether the solver has been initialized.

procedure	get_aero_phase (this, aero_phase_name, aero_phase)
	Get a pointer to an aerosol phase by name.

procedure	get_aero_rep (this, aero_rep_name, aero_rep)
	Get a pointer to an aerosol representation by name.

procedure	get_chem_spec_data (this, chem_spec_data)
	Get a pointer to the set of chemical species.

procedure	get_mechanism (this, mech_name, mechanism)
	Get a pointer to a mechanism by name.

procedure	get_sub_model (this, sub_model_name, sub_model)
	Get a pointer to a sub-model by name.

procedure	get_rel_tol (this)
	Get the relative tolerance for the solver.

procedure	get_abs_tol (this, spec_id)
	Get the absolute tolerance for a species on the state array.

procedure	new_state_one_cell (this, env_state)
	Get a new model state variable.

procedure	new_state_multi_cell (this, env_states)
	Get a model state variable based on the this set of model data.

generic	new_state (this, env_state)
	Get a new model state variable.

generic	new_state (this, env_states)
	Get a model state variable based on the this set of model data.

procedure	state_size (this)
	Get the size of the state array.

procedure	state_size_per_cell (this)
	Get the size of the state array per grid cell.

procedure	unique_names (this)
	Get an array of unique names for all species on the state array.

procedure	spec_state_id (this, spec_name, state_id)
	Get the index of a species on the state array by its unique name.

procedure	solver_initialize (this)
	Initialize the solver.

procedure	free_solver (this)
	Free the solver.

generic	initialize_update_object (this, aero_rep, update_data)
	Initialize an update_data object.

generic	initialize_update_object (this, rxn, update_data)
	Initialize an update data object for a reaction.

generic	initialize_update_object (this, sub_model, update_data)
	Initialize an update data object for a sub model.

generic	update_data (this, update_data)
	Update model data.

generic	update_data (this, update_data)
	Update data associated with a reaction. This function should be called when reaction parameters need updated from the host model. For example, this function can be called to update photolysis rates from a host model's photolysis module.

generic	update_data (this, update_data)
	Update data associated with a sub-model. This function should be called when sub-model parameters need updated from the host model.

procedure	solve (this, camp_state, time_step, rxn_phase, solver_stats)
	Run the chemical mechanisms.

procedure	pack_size (this, comm)
	Determine the number of bytes required to pack the variable.

procedure	bin_pack (this, buffer, pos, comm)
	Pack the given variable into a buffer, advancing position.

procedure	bin_unpack (this, buffer, pos, comm)
	Unpack the given variable from a buffer, advancing position.

procedure	print (this, file_unit, solver_data_only)
	Print the core data.

final	finalize (this)
	Finalize the core.

	finalize_array (this)
	Finalize an array of core data.

Public Attributes
type(mechanism_data_ptr), dimension(:), pointer, public	mechanism => null()
	Chemical mechanisms FIXME set up an iterator for external modules to use and make all data members private.

type(chem_spec_data_t), pointer	chem_spec_data => null()
	Chemical species data.

type(sub_model_data_ptr), dimension(:), pointer	sub_model => null()
	Sub models.

type(aero_rep_data_ptr), dimension(:), pointer, public	aero_rep => null()
	Aerosol representations.

type(aero_phase_data_ptr), dimension(:), pointer	aero_phase => null()
	Aerosol phases.

integer(kind=i_kind)	size_state_per_cell
	Size of the state array per grid cell.

integer(kind=i_kind)	n_cells = 1
	Number of cells to compute.

real(kind=dp), dimension(:), allocatable	init_state
	Initial state values.

logical	split_gas_aero = .false.
	Flag to split gas- and aerosol-phase reactions (for large aerosol representations, like single-particle)

real(kind=dp)	rel_tol = 0.0
	Relative integration tolerance.

real(kind=dp), dimension(:), allocatable	abs_tol

integer(kind=i_kind), dimension(:), allocatable	var_type

type(camp_solver_data_t), pointer, public	solver_data_gas => null()
	Solver data (gas-phase reactions)

type(camp_solver_data_t), pointer, public	solver_data_aero => null()
	Solver data (aerosol-phase reactions)

type(camp_solver_data_t), pointer, public	solver_data_gas_aero => null()
	Solver data (mixed gas- and aerosol-phase reactions)

logical	core_is_initialized = .false.
	Flag indicating the model data has been initialized.

logical	solver_is_initialized = .false.
	Flag indicating the solver has been initialized.

Private Member Functions
procedure, private	initialize_aero_rep_update_object (this, aero_rep, update_data)
	Initialize an update_data object.

procedure, private	initialize_rxn_update_object (this, rxn, update_data)
	Initialize an update data object for a reaction.

procedure, private	initialize_sub_model_update_object (this, sub_model, update_data)
	Initialize an update data object for a sub model.

procedure, private	aero_rep_update_data (this, update_data)
	Update model data.

procedure, private	rxn_update_data (this, update_data)
	Update data associated with a reaction. This function should be called when reaction parameters need updated from the host model. For example, this function can be called to update photolysis rates from a host model's photolysis module.

procedure, private	sub_model_update_data (this, update_data)
	Update data associated with a sub-model. This function should be called when sub-model parameters need updated from the host model.

procedure, private	add_aero_phase (this, phase_name)
	Add an aerosol phase to the model.

procedure, private	add_aero_rep (this, rep_name)
	Add an aerosol representation to the model.

procedure, private	add_mechanism (this, mech_name)
	Add a mechanism to the model.

procedure, private	add_sub_model (this, sub_model_name)
	Add a sub-model to the model.

Detailed Description

Part-MC model data.

Constructor for camp_core_t.

Contains all time-invariant data for a Part-MC model run.

Definition at line 243 of file camp_core.F90.

Constructor & Destructor Documentation

◆ finalize()

final camp_camp_core::camp_core_t::finalize ( type(camp_core_t), intent(inout) this )

final

Finalize the core.

Parameters

[in,out] this CAMP-core data

Definition at line 229 of file camp_core.F90.

Here is the call graph for this function:

Member Function/Subroutine Documentation

◆ add_aero_phase()

procedure, private camp_camp_core::camp_core_t::add_aero_phase	(	class(camp_core_t), intent(inout)	this,
		character(len=*), intent(in)	phase_name )

private

Add an aerosol phase to the model.

Parameters

[in,out]	this	Model data
[in]	phase_name	Aerosol phase name

Definition at line 233 of file camp_core.F90.

◆ add_aero_rep()

procedure, private camp_camp_core::camp_core_t::add_aero_rep	(	class(camp_core_t), intent(inout)	this,
		character(len=*), intent(in)	rep_name )

private

Add an aerosol representation to the model.

Parameters

[in,out]	this	Model data
[in]	rep_name	Aerosol representation name

Definition at line 235 of file camp_core.F90.

◆ add_mechanism()

procedure, private camp_camp_core::camp_core_t::add_mechanism	(	class(camp_core_t), intent(inout)	this,
		character(len=*), intent(in)	mech_name )

private

Add a mechanism to the model.

Parameters

[in,out]	this	Model data
[in]	mech_name	Mechanism name

Definition at line 237 of file camp_core.F90.

◆ add_sub_model()

procedure, private camp_camp_core::camp_core_t::add_sub_model	(	class(camp_core_t), intent(inout)	this,
		character(len=*), intent(in)	sub_model_name )

private

Add a sub-model to the model.

Parameters

[in,out]	this	Model data
[in]	sub_model_name	Sub model name

Definition at line 239 of file camp_core.F90.

◆ aero_rep_update_data()

procedure, private camp_camp_core::camp_core_t::aero_rep_update_data	(	class(camp_core_t), intent(in)	this,
		class(aero_rep_update_data_t), intent(in)	update_data )

private

Update model data.

Parameters

[in]	this	Chemical model
[in]	update_data	Update data

Definition at line 211 of file camp_core.F90.

◆ bin_pack()

procedure camp_camp_core::camp_core_t::bin_pack	(	class(camp_core_t), intent(in)	this,
		character, dimension(:), intent(inout)	buffer,
		integer, intent(inout)	pos,
		integer, intent(in), optional	comm )

Pack the given variable into a buffer, advancing position.

Parameters

[in]	this	Chemical model
[in,out]	buffer	Memory buffer
[in,out]	pos	Current buffer position
[in]	comm	MPI communicator

Definition at line 223 of file camp_core.F90.

◆ bin_unpack()

procedure camp_camp_core::camp_core_t::bin_unpack	(	class(camp_core_t), intent(inout)	this,
		character, dimension(:), intent(inout)	buffer,
		integer, intent(inout)	pos,
		integer, intent(in), optional	comm )

Unpack the given variable from a buffer, advancing position.

Parameters

[in,out]	this	Chemical model
[in,out]	buffer	Memory buffer
[in,out]	pos	Current buffer position
[in]	comm	MPI communicator

Definition at line 225 of file camp_core.F90.

◆ finalize_array()

camp_camp_core::camp_core_t::finalize_array ( type(camp_core_t), dimension(:), intent(inout) this )

Finalize an array of core data.

Parameters

[in,out] this CAMP-core data

Definition at line 229 of file camp_core.F90.

◆ free_solver()

procedure camp_camp_core::camp_core_t::free_solver ( class(camp_core_t), intent(inout) this )

Free the solver.

Parameters

[in,out] this CAMP-core

Definition at line 201 of file camp_core.F90.

◆ get_abs_tol()

procedure camp_camp_core::camp_core_t::get_abs_tol	(	class(camp_core_t), intent(in)	this,
		integer(kind=i_kind), intent(in)	spec_id )

Get the absolute tolerance for a species on the state array.

Returns: Absolute tolerance

Parameters

[in]	this	Model data
[in]	spec_id	Species id

Definition at line 185 of file camp_core.F90.

◆ get_aero_phase()

procedure camp_camp_core::camp_core_t::get_aero_phase	(	class(camp_core_t), intent(in)	this,
		character(len=*), intent(in)	aero_phase_name,
		class(aero_phase_data_t), intent(out), pointer	aero_phase )

Get a pointer to an aerosol phase by name.

Parameters

[in]	this	Model data
[in]	aero_phase_name	Aerosol phase name to search for
[out]	aero_phase	Pointer to the aerosol phase

Definition at line 173 of file camp_core.F90.

◆ get_aero_rep()

procedure camp_camp_core::camp_core_t::get_aero_rep	(	class(camp_core_t), intent(in)	this,
		character(len=*), intent(in)	aero_rep_name,
		class(aero_rep_data_t), intent(out), pointer	aero_rep )

Get a pointer to an aerosol representation by name.

Parameters

[in]	this	Model data
[in]	aero_rep_name	Aerosol representation name to search for
[out]	aero_rep	Aerosol representation

Definition at line 175 of file camp_core.F90.

◆ get_chem_spec_data()

procedure camp_camp_core::camp_core_t::get_chem_spec_data	(	class(camp_core_t), intent(in)	this,
		type(chem_spec_data_t), pointer	chem_spec_data )

Get a pointer to the set of chemical species.

Parameters

[in]	this	Model data
	chem_spec_data	Pointer to the chemical species data

Definition at line 177 of file camp_core.F90.

◆ get_mechanism()

procedure camp_camp_core::camp_core_t::get_mechanism	(	class(camp_core_t), intent(in)	this,
		character(len=*), intent(in)	mech_name,
		type(mechanism_data_t), intent(out), pointer	mechanism )

Get a pointer to a mechanism by name.

Parameters

[in]	this	Model data
[in]	mech_name	Mechanism name to search for
[out]	mechanism	Pointer to the mechanism

Definition at line 179 of file camp_core.F90.

◆ get_rel_tol()

procedure camp_camp_core::camp_core_t::get_rel_tol ( class(camp_core_t), intent(in) this )

Get the relative tolerance for the solver.

Returns: Relative tolerance

Parameters

[in] this Model data

Definition at line 183 of file camp_core.F90.

◆ get_sub_model()

procedure camp_camp_core::camp_core_t::get_sub_model	(	class(camp_core_t), intent(in)	this,
		character(len=*), intent(in)	sub_model_name,
		class(sub_model_data_t), intent(out), pointer	sub_model )

Get a pointer to a sub-model by name.

Parameters

[in]	this	Model data
[in]	sub_model_name	Sub model name to search for
[out]	sub_model	Sub model

Definition at line 181 of file camp_core.F90.

◆ initialize()

procedure camp_camp_core::camp_core_t::initialize ( class(camp_core_t), intent(inout), target this )

Initialize the model.

Parameters

[in,out] this Model data

Definition at line 167 of file camp_core.F90.

◆ initialize_aero_rep_update_object()

procedure, private camp_camp_core::camp_core_t::initialize_aero_rep_update_object	(	class(camp_core_t), intent(in)	this,
		class(aero_rep_data_t), intent(inout)	aero_rep,
		class(aero_rep_update_data_t), intent(out)	update_data )

private

Initialize an update_data object.

Parameters

[in]	this	CAMP core
[in,out]	aero_rep	Aerosol representation to be updated
[out]	update_data	Update data object

Definition at line 203 of file camp_core.F90.

◆ initialize_rxn_update_object()

procedure, private camp_camp_core::camp_core_t::initialize_rxn_update_object	(	class(camp_core_t), intent(in)	this,
		class(rxn_data_t), intent(inout)	rxn,
		class(rxn_update_data_t), intent(out)	update_data )

private

Initialize an update data object for a reaction.

Parameters

[in]	this	CAMP core
[in,out]	rxn	Reaction to be updated
[out]	update_data	Update data object

Definition at line 204 of file camp_core.F90.

◆ initialize_sub_model_update_object()

procedure, private camp_camp_core::camp_core_t::initialize_sub_model_update_object	(	class(camp_core_t), intent(in)	this,
		class(sub_model_data_t), intent(inout)	sub_model,
		class(sub_model_update_data_t), intent(out)	update_data )

private

Initialize an update data object for a sub model.

Parameters

[in]	this	CAMP core
[in,out]	sub_model	Sub model to be updated
[out]	update_data	Update data object

Definition at line 205 of file camp_core.F90.

◆ initialize_update_object() [1/3]

generic camp_camp_core::camp_core_t::initialize_update_object	(	class(camp_core_t), intent(in)	this,
		class(aero_rep_data_t), intent(inout)	aero_rep,
		class(aero_rep_update_data_t), intent(out)	update_data )

Initialize an update_data object.

Parameters

[in]	this	CAMP core
[in,out]	aero_rep	Aerosol representation to be updated
[out]	update_data	Update data object

Definition at line 206 of file camp_core.F90.

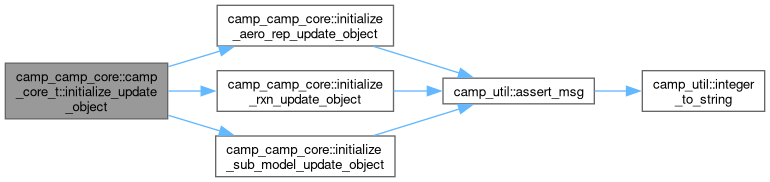

Here is the call graph for this function:

◆ initialize_update_object() [2/3]

generic camp_camp_core::camp_core_t::initialize_update_object	(	class(camp_core_t), intent(in)	this,
		class(rxn_data_t), intent(inout)	rxn,
		class(rxn_update_data_t), intent(out)	update_data )

Initialize an update data object for a reaction.

Parameters

[in]	this	CAMP core
[in,out]	rxn	Reaction to be updated
[out]	update_data	Update data object

Definition at line 206 of file camp_core.F90.

◆ initialize_update_object() [3/3]

generic camp_camp_core::camp_core_t::initialize_update_object	(	class(camp_core_t), intent(in)	this,
		class(sub_model_data_t), intent(inout)	sub_model,
		class(sub_model_update_data_t), intent(out)	update_data )

Initialize an update data object for a sub model.

Parameters

[in]	this	CAMP core
[in,out]	sub_model	Sub model to be updated
[out]	update_data	Update data object

Definition at line 206 of file camp_core.F90.

◆ is_initialized()

procedure camp_camp_core::camp_core_t::is_initialized ( class(camp_core_t), intent(in) this )

Indicate whether the core has been initialized.

Parameters

[in] this Model data

Definition at line 169 of file camp_core.F90.

◆ is_solver_initialized()

procedure camp_camp_core::camp_core_t::is_solver_initialized ( class(camp_core_t), intent(in) this )

Indicate whether the solver has been initialized.

Parameters

[in] this Model data

Definition at line 171 of file camp_core.F90.

◆ load()

procedure camp_camp_core::camp_core_t::load	(	class(camp_core_t), intent(inout)	this,
		type(string_t), dimension(:), intent(in), allocatable	input_file_path )

Load model data from a configuration file.

See Input File Format: CAMP-Chem Configuration Data for the input file format.

Parameters

[in,out]	this	Model data
[in]	input_file_path	Part-MC input file paths

Definition at line 165 of file camp_core.F90.

◆ load_files()

procedure camp_camp_core::camp_core_t::load_files	(	class(camp_core_t), intent(inout)	this,
		character(len=*), intent(in)	input_file_path )

Load a set of configuration files.

See Input File Format: CAMP-Chem Configuration File List for the input file format.

Parameters

[in,out]	this	Model data
[in]	input_file_path	Part-MC input file paths

Definition at line 163 of file camp_core.F90.

◆ new_state() [1/2]

generic camp_camp_core::camp_core_t::new_state	(	class(camp_core_t), intent(in)	this,
		type(env_state_t), intent(in), optional, target	env_state )

Get a new model state variable.

Returns: New model state

Parameters

[in]	this	Chemical model
[in]	env_state	Environmental state array (one element per grid cell to solve simultaneously)

Definition at line 189 of file camp_core.F90.

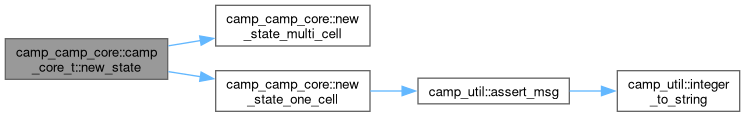

Here is the call graph for this function:

◆ new_state() [2/2]

generic camp_camp_core::camp_core_t::new_state	(	class(camp_core_t), intent(in)	this,
		type(env_state_ptr), dimension(:), intent(in), target	env_states )

Get a model state variable based on the this set of model data.

Returns: New model state

Parameters

[in]	this	Chemical model
[in]	env_states	Environmental state array (one element per grid cell to solve simultaneously)

Definition at line 189 of file camp_core.F90.

◆ new_state_multi_cell()

procedure camp_camp_core::camp_core_t::new_state_multi_cell	(	class(camp_core_t), intent(in)	this,
		type(env_state_ptr), dimension(:), intent(in), target	env_states )

Get a model state variable based on the this set of model data.

Returns: New model state

Parameters

[in]	this	Chemical model
[in]	env_states	Environmental state array (one element per grid cell to solve simultaneously)

Definition at line 188 of file camp_core.F90.

◆ new_state_one_cell()

procedure camp_camp_core::camp_core_t::new_state_one_cell	(	class(camp_core_t), intent(in)	this,
		type(env_state_t), intent(in), optional, target	env_state )

Get a new model state variable.

Returns: New model state

Parameters

[in]	this	Chemical model
[in]	env_state	Environmental state array (one element per grid cell to solve simultaneously)

Definition at line 187 of file camp_core.F90.

◆ pack_size()

procedure camp_camp_core::camp_core_t::pack_size	(	class(camp_core_t), intent(in)	this,
		integer, intent(in), optional	comm )

Determine the number of bytes required to pack the variable.

Parameters

[in]	this	Chemical model
[in]	comm	MPI communicator

Definition at line 221 of file camp_core.F90.

◆ print()

procedure camp_camp_core::camp_core_t::print	(	class(camp_core_t), intent(in)	this,
		integer(kind=i_kind), intent(in), optional	file_unit,
		logical, intent(in), optional	solver_data_only )

Print the core data.

Parameters

[in]	this	Core data
[in]	file_unit	File unit for output
[in]	solver_data_only	Print only the solver data (can be used during runtime for debugging)

Definition at line 227 of file camp_core.F90.

◆ rxn_update_data()

procedure, private camp_camp_core::camp_core_t::rxn_update_data	(	class(camp_core_t), intent(in)	this,
		class(rxn_update_data_t), intent(in)	update_data )

private

Update data associated with a reaction. This function should be called when reaction parameters need updated from the host model. For example, this function can be called to update photolysis rates from a host model's photolysis module.

Parameters

[in]	this	Chemical model
[in]	update_data	Update data

Definition at line 212 of file camp_core.F90.

◆ solve()

procedure camp_camp_core::camp_core_t::solve	(	class(camp_core_t), intent(in)	this,
		type(camp_state_t), intent(inout), target	camp_state,
		real(kind=dp), intent(in)	time_step,
		integer(kind=i_kind), intent(in), optional	rxn_phase,
		type(solver_stats_t), intent(inout), optional, target	solver_stats )

Run the chemical mechanisms.

Parameters

[in]	this	Chemical model
[in,out]	camp_state	Current model state
[in]	time_step	Time step over which to integrate (s)
[in]	rxn_phase	Phase to solve - gas, aerosol, or both (default) Use parameters in camp_rxn_data to specify phase: GAS_RXN, AERO_RXN, GAS_AERO_RXN
[in,out]	solver_stats	Return solver statistics to the host model

Definition at line 219 of file camp_core.F90.

◆ solver_initialize()

procedure camp_camp_core::camp_core_t::solver_initialize ( class(camp_core_t), intent(inout) this )

Initialize the solver.

Parameters

[in,out] this Chemical model

Definition at line 199 of file camp_core.F90.

◆ spec_state_id()

procedure camp_camp_core::camp_core_t::spec_state_id	(	class(camp_core_t), intent(in)	this,
		character(len=*), intent(in)	spec_name,
		integer(kind=i_kind), intent(inout)	state_id )

Get the index of a species on the state array by its unique name.

Returns: Flag indicating whether the species was found

Parameters

[in]	this	CAMP core
[in]	spec_name	Species unique name
[in,out]	state_id	Species state id

Definition at line 197 of file camp_core.F90.

◆ state_size()

procedure camp_camp_core::camp_core_t::state_size ( class(camp_core_t), intent(in) this )

Get the size of the state array.

Returns: State size

Parameters

[in] this Chemical model

Definition at line 191 of file camp_core.F90.

◆ state_size_per_cell()

procedure camp_camp_core::camp_core_t::state_size_per_cell ( class(camp_core_t), intent(in) this )

Get the size of the state array per grid cell.

Returns: State size

Parameters

[in] this Chemical model

Definition at line 193 of file camp_core.F90.

◆ sub_model_update_data()

procedure, private camp_camp_core::camp_core_t::sub_model_update_data	(	class(camp_core_t), intent(in)	this,
		class(sub_model_update_data_t), intent(in)	update_data )

private

Update data associated with a sub-model. This function should be called when sub-model parameters need updated from the host model.

Parameters

[in]	this	Chemical model
[in]	update_data	Update data

Definition at line 213 of file camp_core.F90.

◆ unique_names()

procedure camp_camp_core::camp_core_t::unique_names ( class(camp_core_t), intent(in) this )

Get an array of unique names for all species on the state array.

The order of this array is the same as the state array for one grid cell

Returns: Array of unique species names

Parameters

[in] this CAMP core

Definition at line 195 of file camp_core.F90.

◆ update_data() [1/3]

generic camp_camp_core::camp_core_t::update_data	(	class(camp_core_t), intent(in)	this,
		class(aero_rep_update_data_t), intent(in)	update_data )

Update model data.

Parameters

[in]	this	Chemical model
[in]	update_data	Update data

Definition at line 214 of file camp_core.F90.

◆ update_data() [2/3]

generic camp_camp_core::camp_core_t::update_data	(	class(camp_core_t), intent(in)	this,
		class(rxn_update_data_t), intent(in)	update_data )

Update data associated with a reaction. This function should be called when reaction parameters need updated from the host model. For example, this function can be called to update photolysis rates from a host model's photolysis module.

Parameters

[in]	this	Chemical model
[in]	update_data	Update data

Definition at line 214 of file camp_core.F90.

◆ update_data() [3/3]

generic camp_camp_core::camp_core_t::update_data	(	class(camp_core_t), intent(in)	this,
		class(sub_model_update_data_t), intent(in)	update_data )

Update data associated with a sub-model. This function should be called when sub-model parameters need updated from the host model.

Parameters

[in]	this	Chemical model
[in]	update_data	Update data

Definition at line 214 of file camp_core.F90.

Member Data Documentation

◆ abs_tol

real(kind=dp), dimension(:), allocatable camp_camp_core::camp_core_t::abs_tol

Definition at line 148 of file camp_core.F90.

◆ aero_phase

type(aero_phase_data_ptr), dimension(:), pointer camp_camp_core::camp_core_t::aero_phase => null()

Aerosol phases.

Definition at line 134 of file camp_core.F90.

◆ aero_rep

type(aero_rep_data_ptr), dimension(:), pointer, public camp_camp_core::camp_core_t::aero_rep => null()

Aerosol representations.

Definition at line 132 of file camp_core.F90.

◆ chem_spec_data

type(chem_spec_data_t), pointer camp_camp_core::camp_core_t::chem_spec_data => null()

Chemical species data.

Definition at line 128 of file camp_core.F90.

◆ core_is_initialized

logical camp_camp_core::camp_core_t::core_is_initialized = .false.

Flag indicating the model data has been initialized.

Definition at line 158 of file camp_core.F90.

◆ init_state

real(kind=dp), dimension(:), allocatable camp_camp_core::camp_core_t::init_state

Initial state values.

Definition at line 140 of file camp_core.F90.

◆ mechanism

type(mechanism_data_ptr), dimension(:), pointer, public camp_camp_core::camp_core_t::mechanism => null()

Chemical mechanisms FIXME set up an iterator for external modules to use and make all data members private.

Definition at line 126 of file camp_core.F90.

◆ n_cells

integer(kind=i_kind) camp_camp_core::camp_core_t::n_cells = 1

Number of cells to compute.

Definition at line 138 of file camp_core.F90.

◆ rel_tol

real(kind=dp) camp_camp_core::camp_core_t::rel_tol = 0.0

Relative integration tolerance.

Definition at line 145 of file camp_core.F90.

◆ size_state_per_cell

integer(kind=i_kind) camp_camp_core::camp_core_t::size_state_per_cell

Size of the state array per grid cell.

Definition at line 136 of file camp_core.F90.

◆ solver_data_aero

type(camp_solver_data_t), pointer, public camp_camp_core::camp_core_t::solver_data_aero => null()

Solver data (aerosol-phase reactions)

Definition at line 154 of file camp_core.F90.

◆ solver_data_gas

type(camp_solver_data_t), pointer, public camp_camp_core::camp_core_t::solver_data_gas => null()

Solver data (gas-phase reactions)

Definition at line 152 of file camp_core.F90.

◆ solver_data_gas_aero

type(camp_solver_data_t), pointer, public camp_camp_core::camp_core_t::solver_data_gas_aero => null()

Solver data (mixed gas- and aerosol-phase reactions)

Definition at line 156 of file camp_core.F90.

◆ solver_is_initialized

logical camp_camp_core::camp_core_t::solver_is_initialized = .false.

Flag indicating the solver has been initialized.

Definition at line 160 of file camp_core.F90.

◆ split_gas_aero

logical camp_camp_core::camp_core_t::split_gas_aero = .false.

Flag to split gas- and aerosol-phase reactions (for large aerosol representations, like single-particle)

Definition at line 143 of file camp_core.F90.

◆ sub_model

type(sub_model_data_ptr), dimension(:), pointer camp_camp_core::camp_core_t::sub_model => null()

Sub models.

Definition at line 130 of file camp_core.F90.

◆ var_type

integer(kind=i_kind), dimension(:), allocatable camp_camp_core::camp_core_t::var_type

Definition at line 150 of file camp_core.F90.

The documentation for this type was generated from the following file:

camp_core.F90

Public Member Functions

Public Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ finalize()

Member Function/Subroutine Documentation

◆ add_aero_phase()

◆ add_aero_rep()

◆ add_mechanism()

◆ add_sub_model()

◆ aero_rep_update_data()

◆ bin_pack()

◆ bin_unpack()

◆ finalize_array()

◆ free_solver()

◆ get_abs_tol()

◆ get_aero_phase()

◆ get_aero_rep()

◆ get_chem_spec_data()

◆ get_mechanism()

◆ get_rel_tol()

◆ get_sub_model()

◆ initialize()

◆ initialize_aero_rep_update_object()

◆ initialize_rxn_update_object()

◆ initialize_sub_model_update_object()

◆ initialize_update_object() [1/3]

◆ initialize_update_object() [2/3]

◆ initialize_update_object() [3/3]

◆ is_initialized()

◆ is_solver_initialized()

◆ load()

◆ load_files()

◆ new_state() [1/2]

◆ new_state() [2/2]

◆ new_state_multi_cell()

◆ new_state_one_cell()

◆ pack_size()

◆ print()

◆ rxn_update_data()

◆ solve()

◆ solver_initialize()

◆ spec_state_id()

◆ state_size()

◆ state_size_per_cell()

◆ sub_model_update_data()

◆ unique_names()

◆ update_data() [1/3]

◆ update_data() [2/3]

◆ update_data() [3/3]

Member Data Documentation

◆ abs_tol

◆ aero_phase

◆ aero_rep

◆ chem_spec_data

◆ core_is_initialized

◆ init_state

◆ mechanism

◆ n_cells

◆ rel_tol

◆ size_state_per_cell

◆ solver_data_aero

◆ solver_data_gas

◆ solver_data_gas_aero

◆ solver_is_initialized

◆ split_gas_aero

◆ sub_model

◆ var_type
