camp_camp_box_model_data::profile_t Type Reference

Property time profile. More...

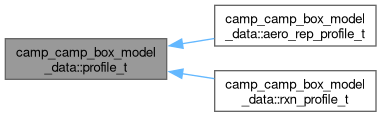

Inheritance diagram for camp_camp_box_model_data::profile_t:

Public Member Functions
procedure	reset (this)
	Reset the profile.
procedure	advance (this)
	Advance the profile by one time step.
procedure	current_value (this)
	Get the current profile value.
procedure	print (this, file_unit)
	Print the profile configuration.

Public Attributes
character(len=:), allocatable	name
	Name of the profile.
integer(kind=i_kind)	curr_time_step
	Current time step in the profile.
integer(kind=i_kind)	curr_transition
	Index for the current position in the transition arrays.
integer(kind=i_kind), dimension(:), allocatable	transition_time_step
	Time step for the next transition, starting with 0 (initial conditions)
real(kind=dp), dimension(:), allocatable	transition_value
	New values for each transition, starting with the initial value.

Detailed Description

Property time profile.

Constructor for profile_t.

Definition at line 54 of file camp_box_model_data.F90.

Member Function/Subroutine Documentation

advance()

procedure camp_camp_box_model_data::profile_t::advance

(

class(profile_t), intent(inout)

this

)

Advance the profile by one time step.

Parameters

[in,out]

this

Property profile

Definition at line 45 of file camp_box_model_data.F90.

current_value()

procedure camp_camp_box_model_data::profile_t::current_value

(

class(profile_t), intent(inout)

this

)

Get the current profile value.

Returns

Current value of the profile

Parameters

[in,out]

this

Property profile

Definition at line 47 of file camp_box_model_data.F90.

print()

procedure camp_camp_box_model_data::profile_t::print	(	class(profile_t), intent(in)	this,
		integer(kind=i_kind), intent(in), optional	file_unit )

Print the profile configuration.

Parameters

[in]	this	Property profile
[in]	file_unit	Output file unit

Definition at line 49 of file camp_box_model_data.F90.

reset()

procedure camp_camp_box_model_data::profile_t::reset

(

class(profile_t), intent(inout)

this

)

Reset the profile.

Parameters

[in,out]

this

Property profile

Definition at line 43 of file camp_box_model_data.F90.

Member Data Documentation

curr_time_step

integer(kind=i_kind) camp_camp_box_model_data::profile_t::curr_time_step

Current time step in the profile.

Definition at line 34 of file camp_box_model_data.F90.

curr_transition

integer(kind=i_kind) camp_camp_box_model_data::profile_t::curr_transition

Index for the current position in the transition arrays.

Definition at line 36 of file camp_box_model_data.F90.

name

character(len=:), allocatable camp_camp_box_model_data::profile_t::name

Name of the profile.

Definition at line 32 of file camp_box_model_data.F90.

transition_time_step

integer(kind=i_kind), dimension(:), allocatable camp_camp_box_model_data::profile_t::transition_time_step

Time step for the next transition, starting with 0 (initial conditions)

Definition at line 38 of file camp_box_model_data.F90.

transition_value

real(kind=dp), dimension(:), allocatable camp_camp_box_model_data::profile_t::transition_value

New values for each transition, starting with the initial value.

Definition at line 40 of file camp_box_model_data.F90.

---

The documentation for this type was generated from the following file:

• camp_box_model_data.F90
