Single particle aerosol representation. More...

Inheritance diagram for camp_aero_rep_single_particle::aero_rep_single_particle_t:

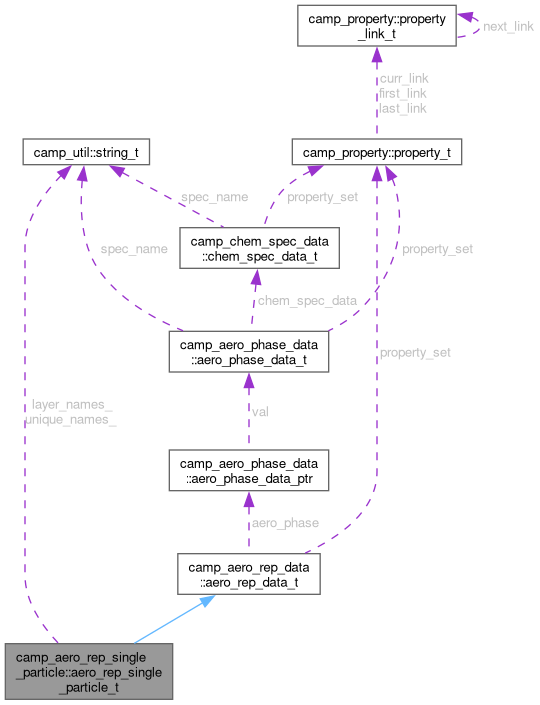

Collaboration diagram for camp_aero_rep_single_particle::aero_rep_single_particle_t:

[legend]

Public Member Functions
procedure	initialize (this, aero_phase_set, spec_state_id)
	Initialize the aerosol representation data, validating component data and loading any required information from the `aero_rep_data_t::property_set`. This routine should be called once for each aerosol representation at the beginning of a model run after all the input files have been read in. It ensures all data required during the model run are included in the condensed data arrays.

procedure	maximum_computational_particles (this)
	Returns the maximum number of computational particles.

procedure	update_data_initialize_number (this, update_data, aero_rep_type)
	Initialize an update data number object.

procedure	size (this)
	Get the size of the section of the `camp_camp_state::camp_state_t::state_var` array required for this aerosol representation.

procedure	per_particle_size (this)
	Get the number of state variables per-particle.

procedure	unique_names (this, phase_name, tracer_type, spec_name)
	Get a list of unique names for each element on the `camp_camp_state::camp_state_t::state_var` array for this aerosol representation. The list may be restricted to a particular phase and/or aerosol species by including the phase_name and spec_name arguments.

procedure	spec_state_id (this, unique_name)
	Get a species id on the `camp_camp_state::camp_state_t::state_var` array by its unique name. These are unique ids for each element on the state array for this aerosol representation and are numbered:

procedure	spec_name (this, unique_name)
	Get the non-unique name of a species by its unique name.

procedure	num_phase_instances (this, phase_name)
	Get the number of instances of an aerosol phase in this representation.

procedure	num_jac_elem (this, phase_id)
	Get the number of Jacobian elements used in calculations of aerosol mass, volume, number, etc. for a particular phase.

procedure	num_layers (this)
	Returns the number of layers.

procedure	num_phases (this, layer)
	Returns the number of phases in a layer or overall.

procedure	phase_state_size (this, layer, phase)
	Returns the number of state variables for a layer and phase.

final	finalize (this)
	Finalize the aerosol representation.

Public Member Functions inherited from camp_aero_rep_data::aero_rep_data_t
procedure(initialize), deferred	initialize initialize
	Initialize the aerosol representation data, validating component data and loading any required information from the `aero_rep_data_t::property_set`. This routine should be called once for each aerosol representation at the beginning of a model run after all the input files have been read in. It ensures all data required during the model run are included in the condensed data arrays.

procedure(get_size), deferred	size get_size
	Get the size of the section of the `camp_camp_state::camp_state_t::state_var` array required for this aerosol representation.

procedure(unique_names), deferred	unique_names unique_names
	Get a list of unique names for each element on the `camp_camp_state::camp_state_t::state_var` array for this aerosol representation. The list may be restricted to a particular phase and/or aerosol species by including the phase_name and spec_name arguments.

procedure(spec_state_id), deferred	spec_state_id spec_state_id
	Get a species id on the `camp_camp_state::camp_state_t::state_var` array by its unique name. These are unique ids for each element on the state array for this aerosol representation and are numbered:

procedure(spec_name), deferred	spec_name spec_name
	Get the non-unique name of a species by its unique name.

procedure(num_phase_instances), deferred	num_phase_instances num_phase_instances
	Get the number of instances of an aerosol phase.

procedure(num_jac_elem), deferred	num_jac_elem num_jac_elem
	Get the number of Jacobian elements for calculations of mass, volume, number, etc for a particular phase.

procedure	load (this, json, j_obj)
	Load data from an input file.

procedure	name (this)
	Get the name of the aerosol representation.

procedure	phase_ids (this, phase_name, is_at_surface)
	Get ids for all instances of a phase in this aerosol representation for use during solving.

procedure	pack_size (this, comm)
	Determine the number of bytes required to pack the given value.

procedure	bin_pack (this, buffer, pos, comm)
	Packs the given value into the buffer, advancing position.

procedure	bin_unpack (this, buffer, pos, comm)
	Unpacks the given value from the buffer, advancing position.

procedure	print (this, file_unit)
	Print the aerosol representation data.

Public Attributes
integer(kind=i_kind)	state_id_start = -99999
	First state id for the representation (only used during initialization)

Public Attributes inherited from camp_aero_rep_data::aero_rep_data_t
character(len=:), allocatable, public	rep_name
	Name of the aerosol representation.

type(aero_phase_data_ptr), dimension(:), allocatable, public	aero_phase
	Aerosol phases associated with this aerosol scheme.

type(property_t), pointer, public	property_set => null()
	Aerosol representation parameters. These will be available during initialization, but not during solving. All information required by functions of the aerosol representation must be saved by the exdending type in the condensed data arrays.

real(kind=dp), dimension(:), allocatable, public	condensed_data_real
	Condensed representation data. Theses arrays will be available during solving, and should contain any information required by the functions of the aerosol representation that cannot be obtained from the camp_camp_state::camp_state_t object. (floating-point)

integer(kind=i_kind), dimension(:), allocatable, public	condensed_data_int
	Condensed representation data. Theses arrays will be available during solving, and should contain any information required by the functions of the aerosol representation that cannot be obtained from the camp_camp_state::camp_state_t object. (integer)

logical, dimension(:), allocatable, public	aero_phase_is_at_surface
	Array of booleans indicating if phase exists at the surface of a particle. Used in SIMPOL and HL reactions for single particle representation.

integer(kind=i_kind), public	num_env_params = 0
	Number of environment-dependent parameters These are parameters that need updated when environmental conditions change.

Private Attributes
type(string_t), dimension(:), allocatable, private	unique_names_
	Unique names for each instance of every chemical species in the aerosol representaiton.

type(string_t), dimension(:), allocatable, private	layer_names_
	Layer names, ordered inner-most to outer-most.

Detailed Description

Single particle aerosol representation.

Time-invariant data related to a single particle aerosol representation.

Definition at line 76 of file aero_rep_single_particle.F90.

Constructor & Destructor Documentation

◆ finalize()

final camp_aero_rep_single_particle::aero_rep_single_particle_t::finalize ( type(aero_rep_single_particle_t), intent(inout) this )

final

Finalize the aerosol representation.

Parameters

[in,out] this Aerosol representation data

Definition at line 146 of file aero_rep_single_particle.F90.

Here is the call graph for this function:

Member Function/Subroutine Documentation

◆ initialize()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::initialize	(	class(aero_rep_single_particle_t), intent(inout)	this,
		type(aero_phase_data_ptr), dimension(:), intent(in), pointer	aero_phase_set,
		integer(kind=i_kind), intent(in)	spec_state_id
	)

Initialize the aerosol representation data, validating component data and loading any required information from the aero_rep_data_t::property_set. This routine should be called once for each aerosol representation at the beginning of a model run after all the input files have been read in. It ensures all data required during the model run are included in the condensed data arrays.

Parameters

[in,out]	this	Aerosol representation data
[in]	aero_phase_set	The set of aerosol phases
[in]	spec_state_id	Beginning state id for this aerosol representation in the model species state array

Definition at line 91 of file aero_rep_single_particle.F90.

◆ maximum_computational_particles()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::maximum_computational_particles ( class(aero_rep_single_particle_t), intent(in) this )

Returns the maximum number of computational particles.

Parameters

[in] this Aerosol representation data

Definition at line 93 of file aero_rep_single_particle.F90.

◆ num_jac_elem()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::num_jac_elem	(	class(aero_rep_single_particle_t), intent(in)	this,
		integer(kind=i_kind), intent(in)	phase_id
	)

Get the number of Jacobian elements used in calculations of aerosol mass, volume, number, etc. for a particular phase.

Returns: Number of Jacobian elements used

Parameters

[in]	this	Aerosol respresentation data
[in]	phase_id	Aerosol phase id

Definition at line 138 of file aero_rep_single_particle.F90.

◆ num_layers()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::num_layers ( class(aero_rep_single_particle_t), intent(in) this )

Returns the number of layers.

Parameters

[in] this Aerosol representation data

Definition at line 140 of file aero_rep_single_particle.F90.

◆ num_phase_instances()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::num_phase_instances	(	class(aero_rep_single_particle_t), intent(in)	this,
		character(len=*), intent(in)	phase_name
	)

Get the number of instances of an aerosol phase in this representation.

Parameters

[in]	this	Aerosol representation data
[in]	phase_name	Aerosol phase name

Definition at line 135 of file aero_rep_single_particle.F90.

◆ num_phases()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::num_phases	(	class(aero_rep_single_particle_t), intent(in)	this,
		integer, intent(in), optional	layer
	)

Returns the number of phases in a layer or overall.

Parameters

[in]	this	Aerosol representation data
[in]	layer	Layer id

Definition at line 142 of file aero_rep_single_particle.F90.

◆ per_particle_size()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::per_particle_size ( class(aero_rep_single_particle_t), intent(in) this )

Get the number of state variables per-particle.

Calling functions can assume each particle has the same size on the state array, and that individual particle states are contiguous and arranged sequentially

Definition at line 109 of file aero_rep_single_particle.F90.

◆ phase_state_size()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::phase_state_size	(	class(aero_rep_single_particle_t), intent(in)	this,
		integer, intent(in), optional	layer,
		integer, intent(in), optional	phase
	)

Returns the number of state variables for a layer and phase.

Parameters

[in]	this	Aerosol representation data
[in]	layer	Layer id
[in]	phase	Phase id

Definition at line 144 of file aero_rep_single_particle.F90.

◆ size()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::size ( class(aero_rep_single_particle_t), intent(in) this )

Get the size of the section of the camp_camp_state::camp_state_t::state_var array required for this aerosol representation.

For a single particle representation, the size will correspond to the the sum of the sizes of a single instance of each aerosol phase provided to aero_rep_single_particle::initialize()

Definition at line 103 of file aero_rep_single_particle.F90.

◆ spec_name()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::spec_name	(	class(aero_rep_single_particle_t), intent(in)	this,
		character(len=*), intent(in)	unique_name
	)

Get the non-unique name of a species by its unique name.

Returns: Chemical species name

Parameters

[in]	this	Aerosol representation data
[in]	unique_name	Unique name of the species in this aerosol representation

Definition at line 133 of file aero_rep_single_particle.F90.

◆ spec_state_id()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::spec_state_id	(	class(aero_rep_single_particle_t), intent(in)	this,
		character(len=*), intent(in)	unique_name
	)

Get a species id on the camp_camp_state::camp_state_t::state_var array by its unique name. These are unique ids for each element on the state array for this aerosol representation and are numbered:

\[x_u \in x_f ... (x_f+n-1)\]

where \(x_u\) is the id of the element corresponding to the species with unique name \(u\) on the camp_camp_state::camp_state_t::state_var array, \(x_f\) is the index of the first element for this aerosol representation on the state array and \(n\) is the total number of variables on the state array from this aerosol representation.

Definition at line 131 of file aero_rep_single_particle.F90.

◆ unique_names()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::unique_names	(	class(aero_rep_single_particle_t), intent(in)	this,
		character(len=*), intent(in), optional	phase_name,
		integer(kind=i_kind), intent(in), optional	tracer_type,
		character(len=*), intent(in), optional	spec_name
	)

Get a list of unique names for each element on the camp_camp_state::camp_state_t::state_var array for this aerosol representation. The list may be restricted to a particular phase and/or aerosol species by including the phase_name and spec_name arguments.

For a single particle representation, the unique names will be the phase name with the species name separated by a '.'

Definition at line 117 of file aero_rep_single_particle.F90.

◆ update_data_initialize_number()

procedure camp_aero_rep_single_particle::aero_rep_single_particle_t::update_data_initialize_number	(	class(aero_rep_single_particle_t), intent(inout)	this,
		class(aero_rep_update_data_single_particle_number_t), intent(out)	update_data,
		integer(kind=i_kind), intent(in)	aero_rep_type
	)

Initialize an update data number object.

Parameters

[in,out]	this	Aerosol representation to update
[out]	update_data	Update data object
[in]	aero_rep_type	Aerosol representaiton id

Definition at line 95 of file aero_rep_single_particle.F90.

Member Data Documentation

◆ layer_names_

type(string_t), dimension(:), allocatable, private camp_aero_rep_single_particle::aero_rep_single_particle_t::layer_names_

private

Layer names, ordered inner-most to outer-most.

Definition at line 81 of file aero_rep_single_particle.F90.

◆ state_id_start

integer(kind=i_kind) camp_aero_rep_single_particle::aero_rep_single_particle_t::state_id_start = -99999

First state id for the representation (only used during initialization)

Definition at line 83 of file aero_rep_single_particle.F90.

◆ unique_names_

type(string_t), dimension(:), allocatable, private camp_aero_rep_single_particle::aero_rep_single_particle_t::unique_names_

private

Unique names for each instance of every chemical species in the aerosol representaiton.

Definition at line 79 of file aero_rep_single_particle.F90.

The documentation for this interface was generated from the following file:

aero_rep_single_particle.F90
