Single particle aerosol representation functions. More...

Include dependency graph for aero_rep_single_particle.c:

Macros
#define	TEMPERATURE_K_ env_data[0]

#define	PRESSURE_PA_ env_data[1]

#define	UPDATE_NUMBER 0

#define	NUM_LAYERS_ int_data[0]

#define	AERO_REP_ID_ int_data[1]

#define	MAX_PARTICLES_ int_data[2]

#define	PARTICLE_STATE_SIZE_ int_data[3]

#define	NUMBER_CONC_(x) aero_rep_env_data[x]

#define	NUM_INT_PROP_ 4

#define	NUM_FLOAT_PROP_ 0

#define	NUM_ENV_PARAM_ MAX_PARTICLES_

#define	LAYER_PHASE_START_(l) (int_data[NUM_INT_PROP_+l]-1)

#define	LAYER_PHASE_END_(l) (int_data[NUM_INT_PROP_+NUM_LAYERS_+l]-1)

#define	TOTAL_NUM_PHASES_ (LAYER_PHASE_END_(NUM_LAYERS_-1)-LAYER_PHASE_START_(0)+1)

#define	NUM_PHASES_(l) (LAYER_PHASE_END_(l)-LAYER_PHASE_START_(l)+1)

#define	PHASE_STATE_ID_(l, p) (int_data[NUM_INT_PROP_+2*NUM_LAYERS_+LAYER_PHASE_START_(l)+p]-1)

#define	PHASE_MODEL_DATA_ID_(l, p) (int_data[NUM_INT_PROP_+2*NUM_LAYERS_+TOTAL_NUM_PHASES_+LAYER_PHASE_START_(l)+p]-1)

#define	PHASE_NUM_JAC_ELEM_(l, p) int_data[NUM_INT_PROP_+2NUM_LAYERS_+2TOTAL_NUM_PHASES_+LAYER_PHASE_START_(l)+p]

Functions
int	aero_rep_single_particle_get_used_jac_elem (ModelData model_data, int aero_phase_idx, int aero_rep_int_data, double aero_rep_float_data, bool jac_struct)
	Flag Jacobian elements used in calcualtions of mass and volume.

void	aero_rep_single_particle_get_dependencies (int aero_rep_int_data, double aero_rep_float_data, bool *state_flags)
	Flag elements on the state array used by this aerosol representation.

void	aero_rep_single_particle_update_env_state (ModelData model_data, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Update aerosol representation data for new environmental conditions.

void	aero_rep_single_particle_update_state (ModelData model_data, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Update aerosol representation data for a new state.

void	aero_rep_single_particle_get_effective_radius__m (ModelData model_data, int aero_phase_idx, double radius, double partial_deriv, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Get the effective particle radius \(r_{eff}\) (m)

void	aero_rep_single_particle_get_number_conc__n_m3 (ModelData model_data, int aero_phase_idx, double number_conc, double partial_deriv, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Get the particle number concentration \(n\) ( \(\mbox{\si{\#\per\cubic\metre}}\))

void	aero_rep_single_particle_get_aero_conc_type (int aero_phase_idx, int aero_conc_type, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Get the type of aerosol concentration used.

void	aero_rep_single_particle_get_aero_phase_mass__kg_m3 (ModelData model_data, int aero_phase_idx, double aero_phase_mass, double partial_deriv, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Get the total mass in an aerosol phase \(m\) ( \(\mbox{\si{\kilogram\per\cubic\metre}}\))

void	aero_rep_single_particle_get_aero_phase_avg_MW__kg_mol (ModelData model_data, int aero_phase_idx, double aero_phase_avg_MW, double partial_deriv, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Get the average molecular weight in an aerosol phase \(m\) ( \(\mbox{\si{\kilo\gram\per\mol}}\))

bool	aero_rep_single_particle_update_data (void update_data, int aero_rep_int_data, double aero_rep_float_data, double aero_rep_env_data)
	Update aerosol representation data.

void	aero_rep_single_particle_print (int aero_rep_int_data, double aero_rep_float_data)
	Print the Single Particle reaction parameters.

void *	aero_rep_single_particle_create_number_update_data ()
	Create update data for new particle number.

void	aero_rep_single_particle_set_number_update_data__n_m3 (void *update_data, int aero_rep_id, int particle_id, double number_conc)
	Set number update data (#/m3)

Detailed Description

Single particle aerosol representation functions.

Definition in file aero_rep_single_particle.c.

Macro Definition Documentation

◆ AERO_REP_ID_

#define AERO_REP_ID_ int_data[1]

Definition at line 24 of file aero_rep_single_particle.c.

◆ LAYER_PHASE_END_

#define LAYER_PHASE_END_ ( l ) (int_data[NUM_INT_PROP_+NUM_LAYERS_+l]-1)

Definition at line 32 of file aero_rep_single_particle.c.

◆ LAYER_PHASE_START_

#define LAYER_PHASE_START_ ( l ) (int_data[NUM_INT_PROP_+l]-1)

Definition at line 31 of file aero_rep_single_particle.c.

◆ MAX_PARTICLES_

#define MAX_PARTICLES_ int_data[2]

Definition at line 25 of file aero_rep_single_particle.c.

◆ NUM_ENV_PARAM_

#define NUM_ENV_PARAM_ MAX_PARTICLES_

Definition at line 30 of file aero_rep_single_particle.c.

◆ NUM_FLOAT_PROP_

#define NUM_FLOAT_PROP_ 0

Definition at line 29 of file aero_rep_single_particle.c.

◆ NUM_INT_PROP_

#define NUM_INT_PROP_ 4

Definition at line 28 of file aero_rep_single_particle.c.

◆ NUM_LAYERS_

#define NUM_LAYERS_ int_data[0]

Definition at line 23 of file aero_rep_single_particle.c.

◆ NUM_PHASES_

#define NUM_PHASES_ ( l ) (LAYER_PHASE_END_(l)-LAYER_PHASE_START_(l)+1)

Definition at line 34 of file aero_rep_single_particle.c.

◆ NUMBER_CONC_

#define NUMBER_CONC_ ( x ) aero_rep_env_data[x]

Definition at line 27 of file aero_rep_single_particle.c.

◆ PARTICLE_STATE_SIZE_

#define PARTICLE_STATE_SIZE_ int_data[3]

Definition at line 26 of file aero_rep_single_particle.c.

◆ PHASE_MODEL_DATA_ID_

#define PHASE_MODEL_DATA_ID_	(	l,
		p
	)	(int_data[NUM_INT_PROP_+2*NUM_LAYERS_+TOTAL_NUM_PHASES_+LAYER_PHASE_START_(l)+p]-1)

Definition at line 36 of file aero_rep_single_particle.c.

◆ PHASE_NUM_JAC_ELEM_

#define PHASE_NUM_JAC_ELEM_	(	l,
		p
	)	int_data[NUM_INT_PROP_+2NUM_LAYERS_+2TOTAL_NUM_PHASES_+LAYER_PHASE_START_(l)+p]

Definition at line 37 of file aero_rep_single_particle.c.

◆ PHASE_STATE_ID_

#define PHASE_STATE_ID_	(	l,
		p
	)	(int_data[NUM_INT_PROP_+2*NUM_LAYERS_+LAYER_PHASE_START_(l)+p]-1)

Definition at line 35 of file aero_rep_single_particle.c.

◆ PRESSURE_PA_

#define PRESSURE_PA_ env_data[1]

Definition at line 19 of file aero_rep_single_particle.c.

◆ TEMPERATURE_K_

#define TEMPERATURE_K_ env_data[0]

Definition at line 18 of file aero_rep_single_particle.c.

◆ TOTAL_NUM_PHASES_

#define TOTAL_NUM_PHASES_ (LAYER_PHASE_END_(NUM_LAYERS_-1)-LAYER_PHASE_START_(0)+1)

Definition at line 33 of file aero_rep_single_particle.c.

◆ UPDATE_NUMBER

#define UPDATE_NUMBER 0

Definition at line 21 of file aero_rep_single_particle.c.

Function Documentation

◆ aero_rep_single_particle_create_number_update_data()

void * aero_rep_single_particle_create_number_update_data ( )

Create update data for new particle number.

Returns: Pointer to a new number update data object

Definition at line 442 of file aero_rep_single_particle.c.

◆ aero_rep_single_particle_get_aero_conc_type()

void aero_rep_single_particle_get_aero_conc_type	(	int	aero_phase_idx,
		int *	aero_conc_type,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Get the type of aerosol concentration used.

Single particle concentrations are per-particle.

Parameters

aero_phase_idx	Index of the aerosol phase within the representation
aero_conc_type	Pointer to int that will hold the concentration type code (0 = per particle mass concentrations; 1 = total particle mass concentrations)
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Definition at line 250 of file aero_rep_single_particle.c.

Here is the caller graph for this function:

◆ aero_rep_single_particle_get_aero_phase_avg_MW__kg_mol()

void aero_rep_single_particle_get_aero_phase_avg_MW__kg_mol	(	ModelData *	model_data,
		int	aero_phase_idx,
		double *	aero_phase_avg_MW,
		double *	partial_deriv,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Get the average molecular weight in an aerosol phase \(m\) ( \(\mbox{\si{\kilo\gram\per\mol}}\))

The single particle mass is set for each new state as the sum of the masses of the aerosol phases that compose the particle

Parameters

model_data	Pointer to the model data, including the state array
aero_phase_idx	Index of the aerosol phase within the representation
aero_phase_avg_MW	Average molecular weight in the aerosol phase ( \(\mbox{\si{\kilogram\per\mole}}\))
partial_deriv	\(\frac{\partial m}{\partial y}\) where \(y\) are the species on the state array
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Definition at line 331 of file aero_rep_single_particle.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ aero_rep_single_particle_get_aero_phase_mass__kg_m3()

void aero_rep_single_particle_get_aero_phase_mass__kg_m3	(	ModelData *	model_data,
		int	aero_phase_idx,
		double *	aero_phase_mass,
		double *	partial_deriv,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Get the total mass in an aerosol phase \(m\) ( \(\mbox{\si{\kilogram\per\cubic\metre}}\))

The single particle mass is set for each new state as the sum of the masses of the aerosol phases that compose the particle

Parameters

model_data	Pointer to the model data, including the state array
aero_phase_idx	Index of the aerosol phase within the representation
aero_phase_mass	Total mass in the aerosol phase, \(m\) ( \(\mbox{\si{\kilogram\per\cubic\metre}}\))
partial_deriv	\(\frac{\partial m}{\partial y}\) where \(y\) are the species on the state array
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Definition at line 282 of file aero_rep_single_particle.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ aero_rep_single_particle_get_dependencies()

void aero_rep_single_particle_get_dependencies	(	int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		bool *	state_flags
	)

Flag elements on the state array used by this aerosol representation.

The single particle aerosol representation functions do not use state array values

Parameters

aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
state_flags	Array of flags indicating state array elements used

Definition at line 86 of file aero_rep_single_particle.c.

Here is the caller graph for this function:

◆ aero_rep_single_particle_get_effective_radius__m()

void aero_rep_single_particle_get_effective_radius__m	(	ModelData *	model_data,
		int	aero_phase_idx,
		double *	radius,
		double *	partial_deriv,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Get the effective particle radius \(r_{eff}\) (m)

Parameters

model_data	Pointer to the model data, including the state array
aero_phase_idx	Index of the aerosol phase within the representation
radius	Effective particle radius (m)
partial_deriv	\(\frac{\partial r_{eff}}{\partial y}\) where \(y\) are species on the state array
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Definition at line 153 of file aero_rep_single_particle.c.

Here is the call graph for this function:

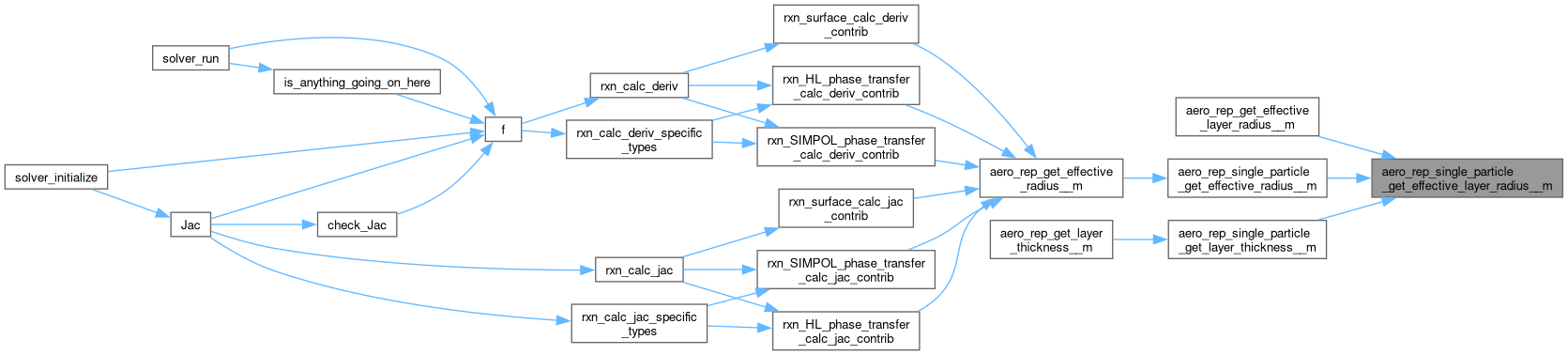

Here is the caller graph for this function:

◆ aero_rep_single_particle_get_number_conc__n_m3()

void aero_rep_single_particle_get_number_conc__n_m3	(	ModelData *	model_data,
		int	aero_phase_idx,
		double *	number_conc,
		double *	partial_deriv,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Get the particle number concentration \(n\) ( \(\mbox{\si{\#\per\cubic\metre}}\))

This single particle number concentration is set by the aerosol model prior to solving the chemistry. Thus, all \(\frac{\partial n}{\partial y}\) are zero. Also, there is only one set of particles in the single particle representation, so the phase index is not used.

Parameters

model_data	Pointer to the model data, including the state array
aero_phase_idx	Index of the aerosol phase within the representation (not used)
number_conc	Particle number concentration, \(n\) ( \(\mbox{\si{\#\per\cubic\metre}}\))
partial_deriv	\(\frac{\partial n}{\partial y}\) where \(y\) are the species on the state array
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Definition at line 212 of file aero_rep_single_particle.c.

Here is the caller graph for this function:

◆ aero_rep_single_particle_get_used_jac_elem()

int aero_rep_single_particle_get_used_jac_elem	(	ModelData *	model_data,
		int	aero_phase_idx,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		bool *	jac_struct
	)

Flag Jacobian elements used in calcualtions of mass and volume.

Parameters

aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
model_data	Pointer to the model data
aero_phase_idx	Index of the aerosol phase to find elements for
jac_struct	1D array of flags indicating potentially non-zero Jacobian elements. (The dependent variable should have been chosen by the calling function.)

Returns: Number of Jacobian elements flagged

Definition at line 52 of file aero_rep_single_particle.c.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ aero_rep_single_particle_print()

void aero_rep_single_particle_print	(	int *	aero_rep_int_data,
		double *	aero_rep_float_data
	)

Print the Single Particle reaction parameters.

Parameters

aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data

Definition at line 414 of file aero_rep_single_particle.c.

Here is the caller graph for this function:

◆ aero_rep_single_particle_set_number_update_data__n_m3()

void aero_rep_single_particle_set_number_update_data__n_m3	(	void *	update_data,
		int	aero_rep_id,
		int	particle_id,
		double	number_conc
	)

Set number update data (#/m3)

Parameters

update_data	Pointer to an allocated number update data object
aero_rep_id	Id of the aerosol representation(s) to update
particle_id	Id of the computational particle
number_conc	New particle number (#/m3)

Definition at line 458 of file aero_rep_single_particle.c.

◆ aero_rep_single_particle_update_data()

bool aero_rep_single_particle_update_data	(	void *	update_data,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Update aerosol representation data.

Single particle aerosol representation update data is structured as follows:

int aero_rep_id (Id of one or more aerosol representations set by the host model using the camp_aero_rep_single_particle::aero_rep_single_particle_t::set_id function prior to initializing the solver.)
int update_type (Type of update to perform. Can be UPDATE_NUMBER only.)
double new_value (Either the new radius (m) or the new number concentration ( \(\mbox{\si{\#\per\cubic\centi\metre}}\)).)

Parameters

update_data	Pointer to the updated aerosol representation data
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Returns: Flag indicating whether this is the aerosol representation to update

Definition at line 383 of file aero_rep_single_particle.c.

Here is the caller graph for this function:

◆ aero_rep_single_particle_update_env_state()

void aero_rep_single_particle_update_env_state	(	ModelData *	model_data,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Update aerosol representation data for new environmental conditions.

The single particle aerosol representation does not use environmental conditions

Parameters

model_data	Pointer to the model data
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Definition at line 108 of file aero_rep_single_particle.c.

Here is the caller graph for this function:

◆ aero_rep_single_particle_update_state()

void aero_rep_single_particle_update_state	(	ModelData *	model_data,
		int *	aero_rep_int_data,
		double *	aero_rep_float_data,
		double *	aero_rep_env_data
	)

Update aerosol representation data for a new state.

Parameters

model_data	Pointer to the model data, include the state array
aero_rep_int_data	Pointer to the aerosol representation integer data
aero_rep_float_data	Pointer to the aerosol representation floating-point data
aero_rep_env_data	Pointer to the aerosol representation environment-dependent parameters

Definition at line 129 of file aero_rep_single_particle.c.

Here is the caller graph for this function:

Macros

Functions

Detailed Description

Macro Definition Documentation

◆ AERO_REP_ID_

◆ LAYER_PHASE_END_

◆ LAYER_PHASE_START_

◆ MAX_PARTICLES_

◆ NUM_ENV_PARAM_

◆ NUM_FLOAT_PROP_

◆ NUM_INT_PROP_

◆ NUM_LAYERS_

◆ NUM_PHASES_

◆ NUMBER_CONC_

◆ PARTICLE_STATE_SIZE_

◆ PHASE_MODEL_DATA_ID_

◆ PHASE_NUM_JAC_ELEM_

◆ PHASE_STATE_ID_

◆ PRESSURE_PA_

◆ TEMPERATURE_K_

◆ TOTAL_NUM_PHASES_

◆ UPDATE_NUMBER

Function Documentation

◆ aero_rep_single_particle_create_number_update_data()

◆ aero_rep_single_particle_get_aero_conc_type()

◆ aero_rep_single_particle_get_aero_phase_avg_MW__kg_mol()

◆ aero_rep_single_particle_get_aero_phase_mass__kg_m3()

◆ aero_rep_single_particle_get_dependencies()

◆ aero_rep_single_particle_get_effective_radius__m()

◆ aero_rep_single_particle_get_number_conc__n_m3()

◆ aero_rep_single_particle_get_used_jac_elem()

◆ aero_rep_single_particle_print()

◆ aero_rep_single_particle_set_number_update_data__n_m3()

◆ aero_rep_single_particle_update_data()

◆ aero_rep_single_particle_update_env_state()

◆ aero_rep_single_particle_update_state()
